04/12/2006

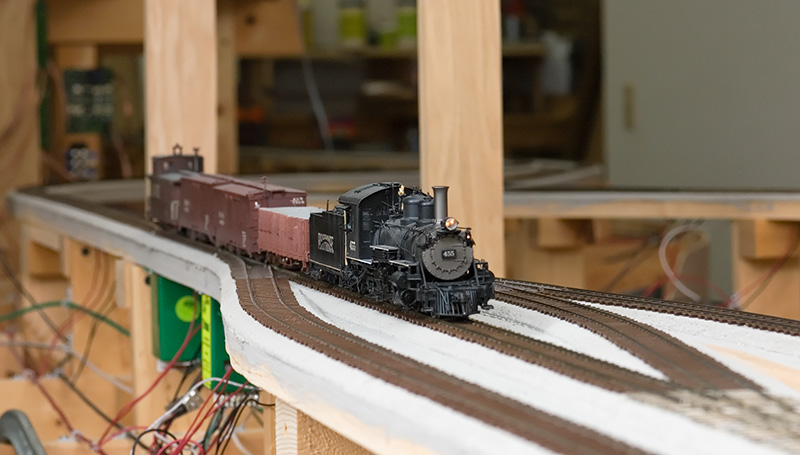

The tracks in Telluride are finally complete, and the first train arrives in town.

04/12/2006

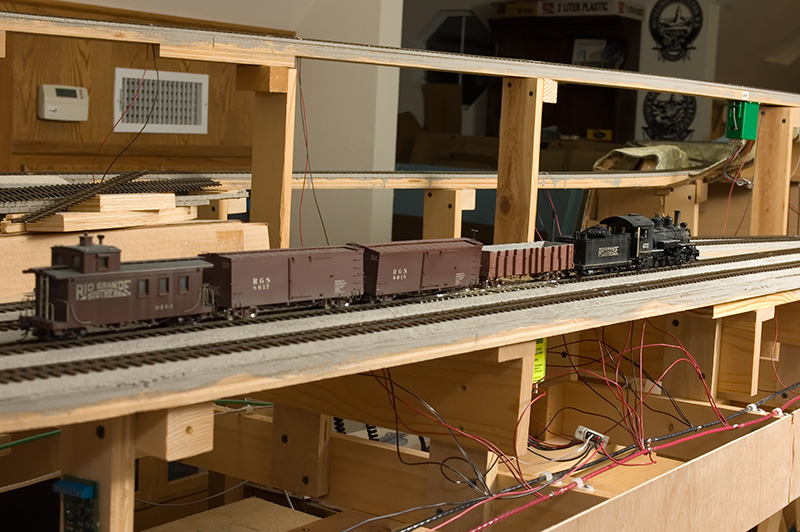

The train heads on through town in the afternoon sun.



03/24/2005

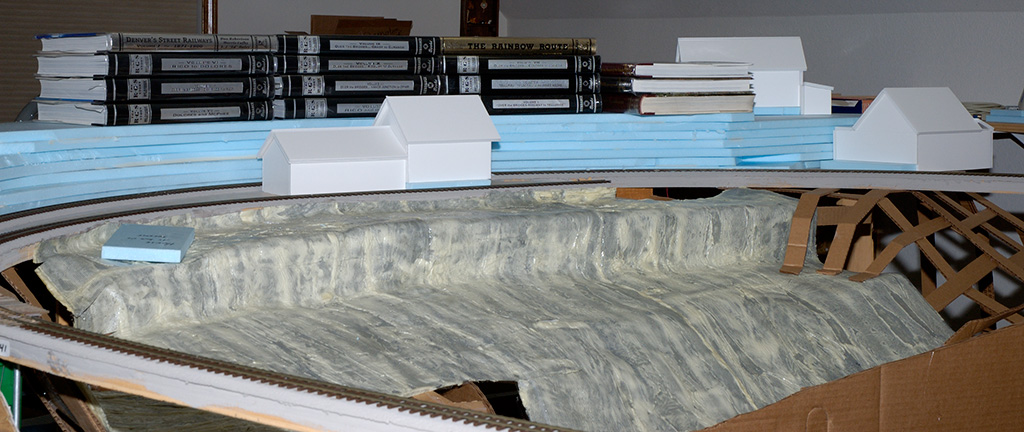

The hill behind Ophir begins to take shape.  All 10 volumes of The RGS Story were required to get things just right.

03/10/2005

New construction in Ophir!



03/10/2005

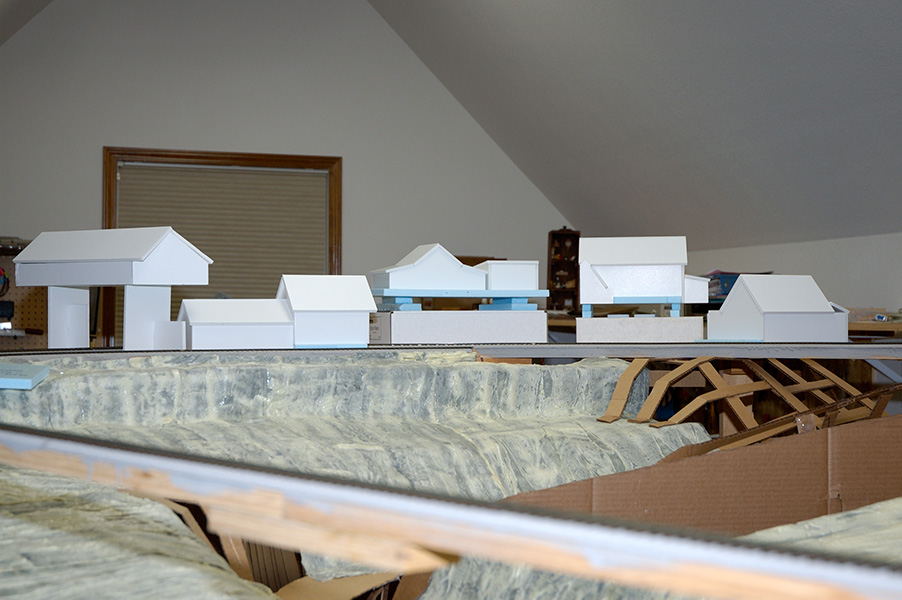

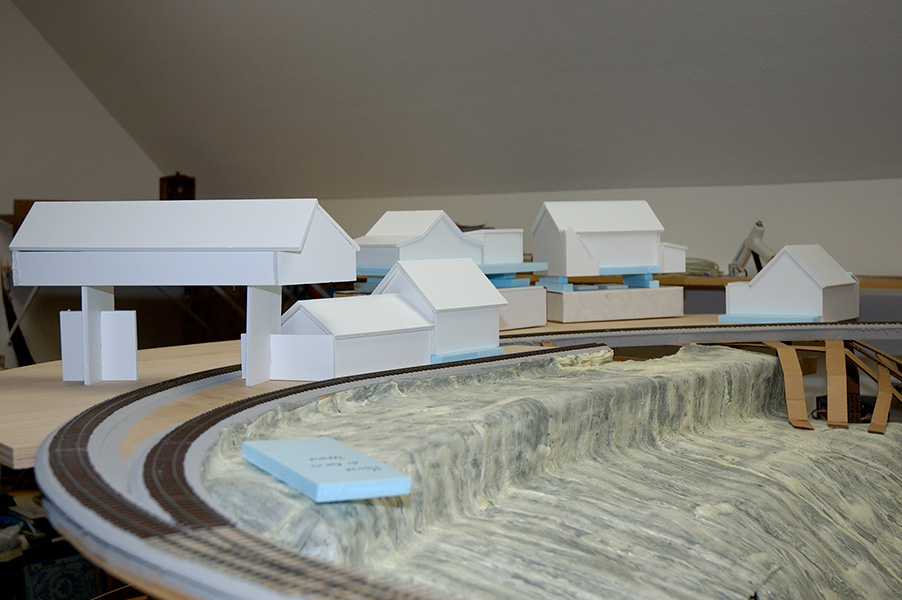

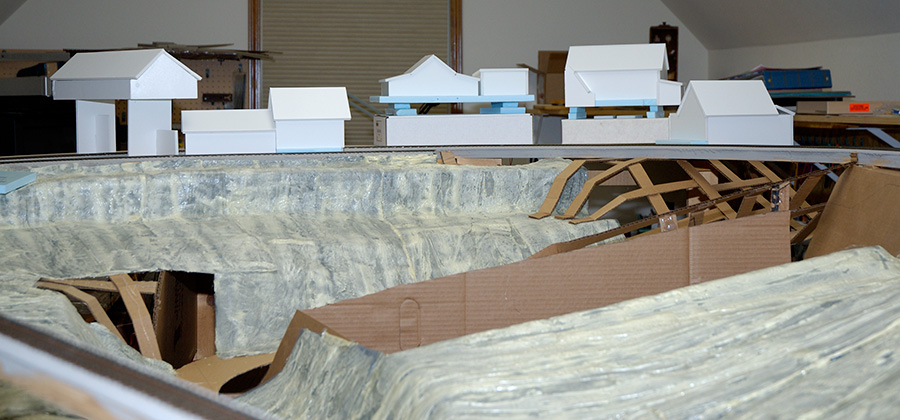

Mockups of all the major buildings in place to help establish location and terrain contours.



03/10/2005

Another view as we come off the bridge into Ophir.

01/13/2005

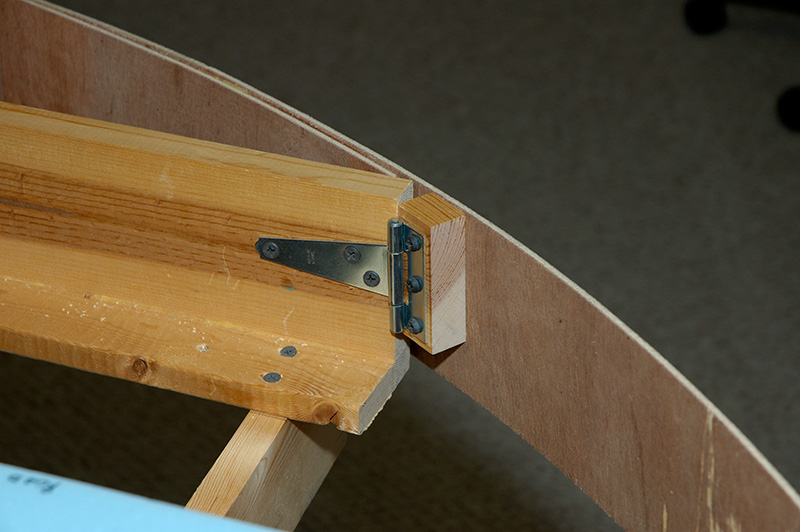

I hate cutting joists at an angle, so a cheap Stanley hinge gives me a solid mounting at any angle I want.

01/13/2005

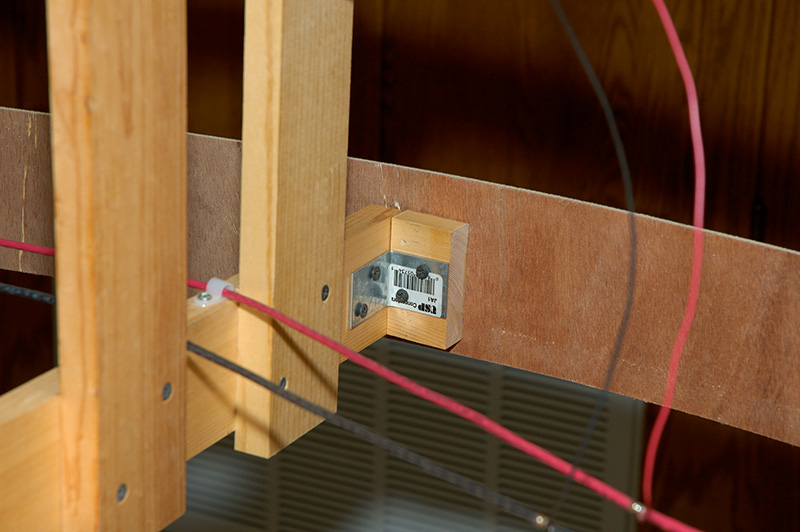

Where the fascia did cross a joist at a 90° angle, I used a right-angle strap to add a bit of stability.

01/13/2005

I also don't like holes in my fascia, and I am too lazy to fill them in, so I glued the plywood to the blocks to which the hinges (or angles) are attached.

01/13/2005

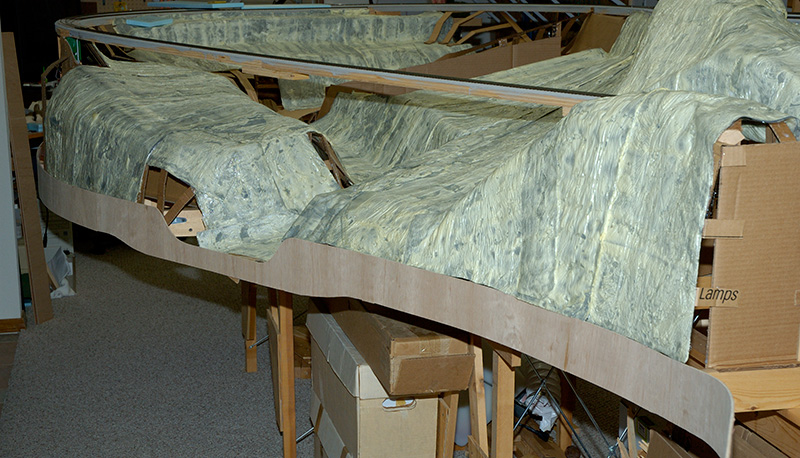

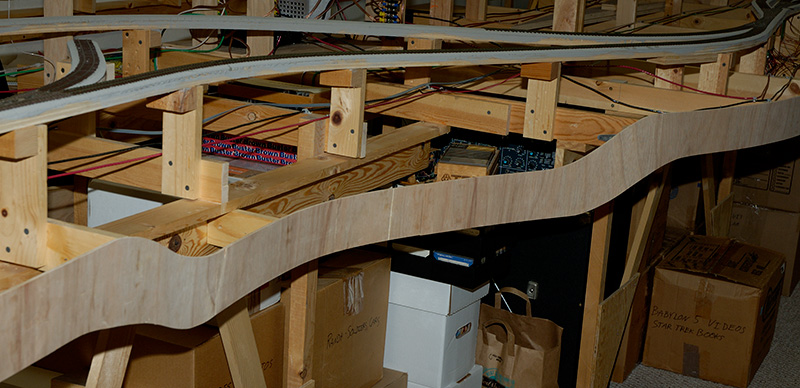

The fascia is mostly the same height all around the layout, but in a few places I made some adjustments for terrain elevation changes.

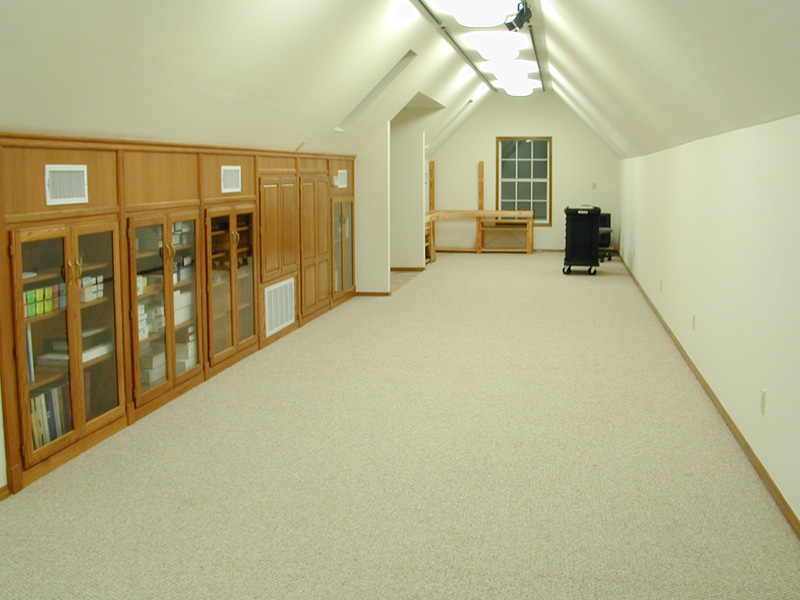

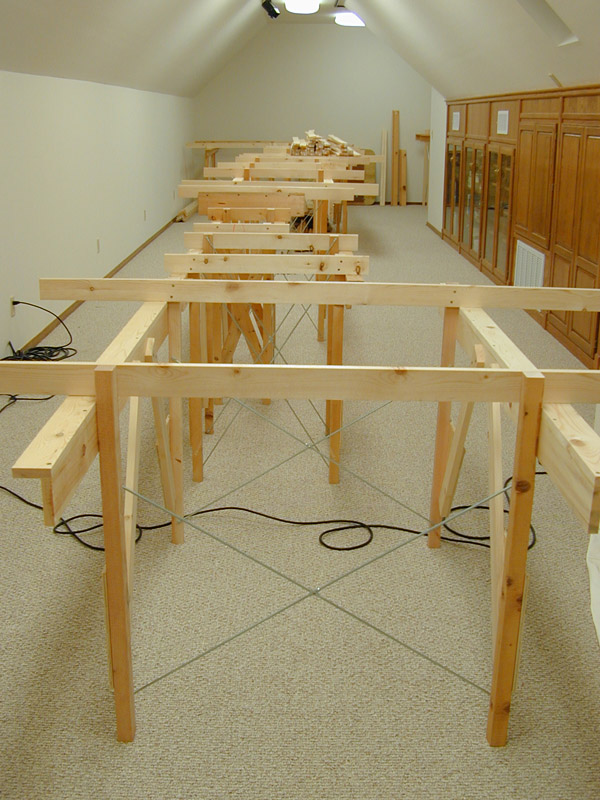

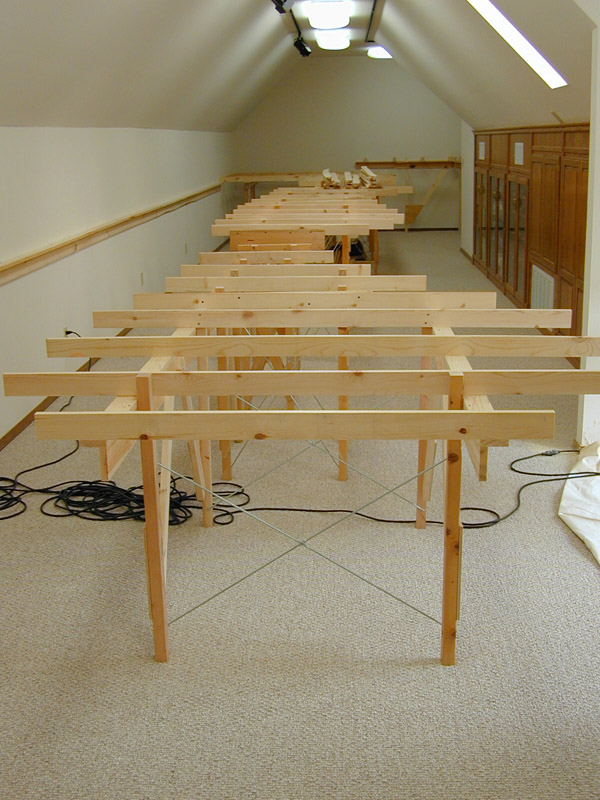

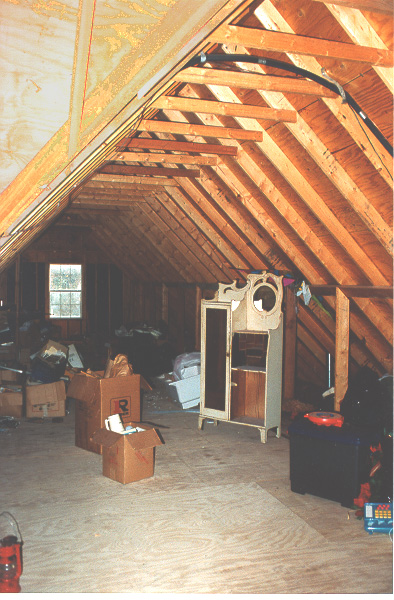

Ready to finish attic space, with previous owner's junk Finished attic space The basic L-girder tables are built All the joists are in place
s_view_attic.jpg (157278 bytes) s_view_room.jpg (146519 bytes) finished_tables.jpg (152715 bytes) finished_benchwork.jpg (153990 bytes)

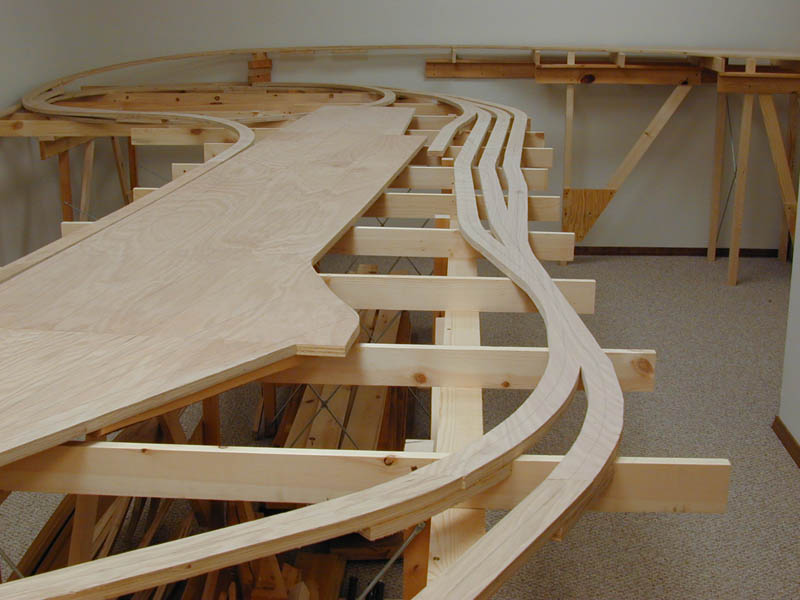

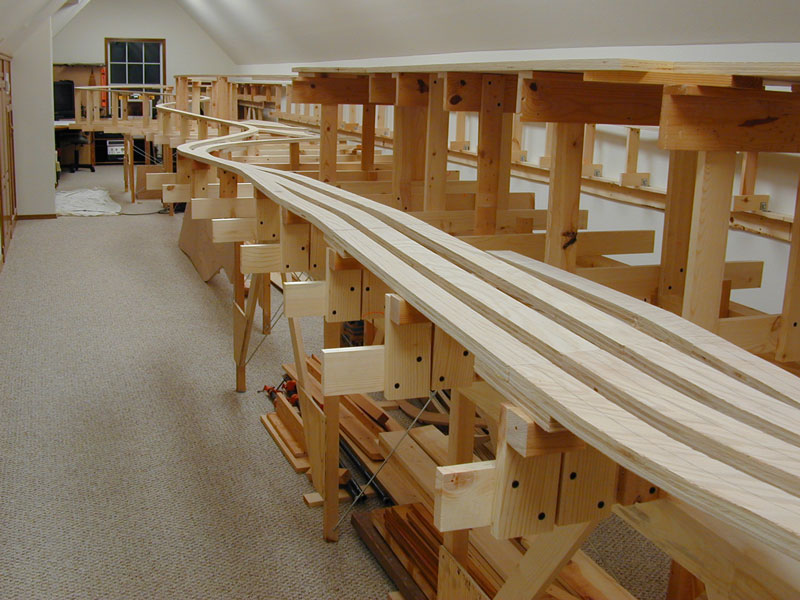

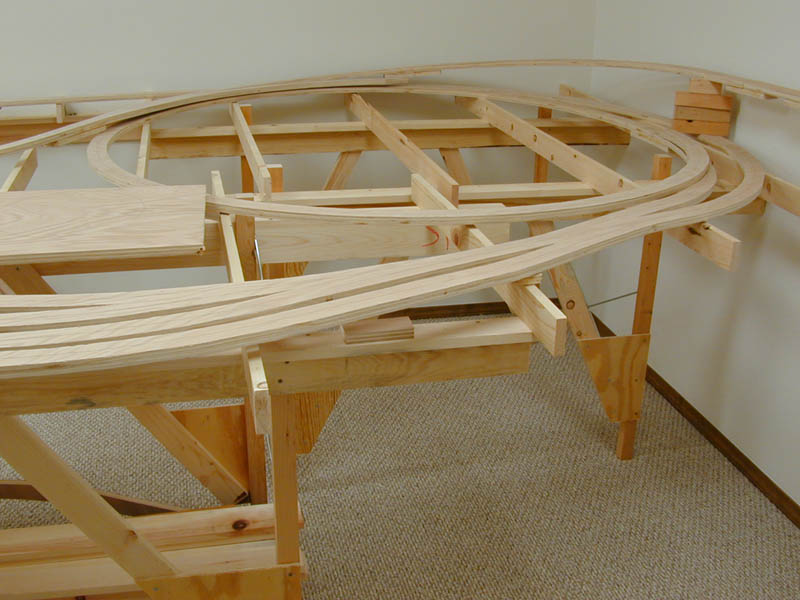

Cookie-cutter sub-roadbed for Vance Jct. and Rico Sub-roadbed for the first turn of the helix Vance Jct. and Rico on risers Support system for the helix
subroadbed5.jpg (69999 bytes) subroadbed4.jpg (77857 bytes) vance2ophir.jpg (115457 bytes) elevated_subroadbed_4.jpg (61609 bytes)

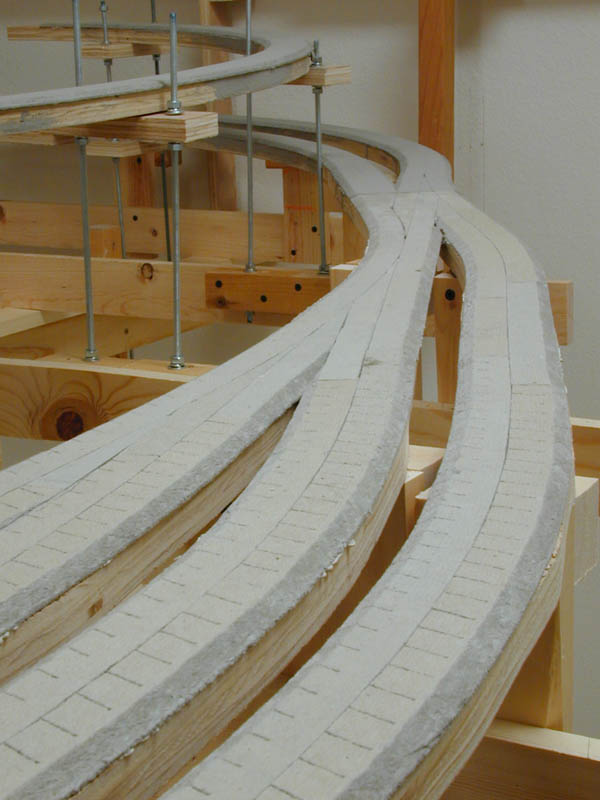

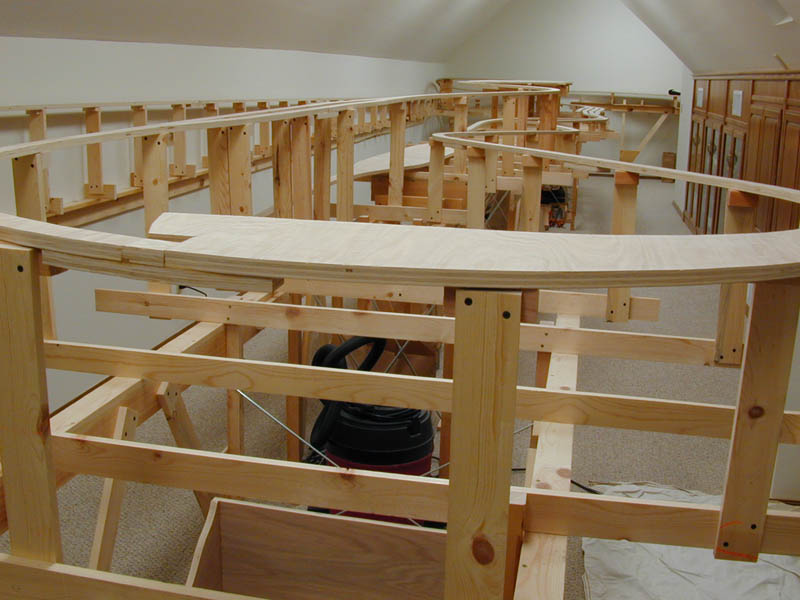

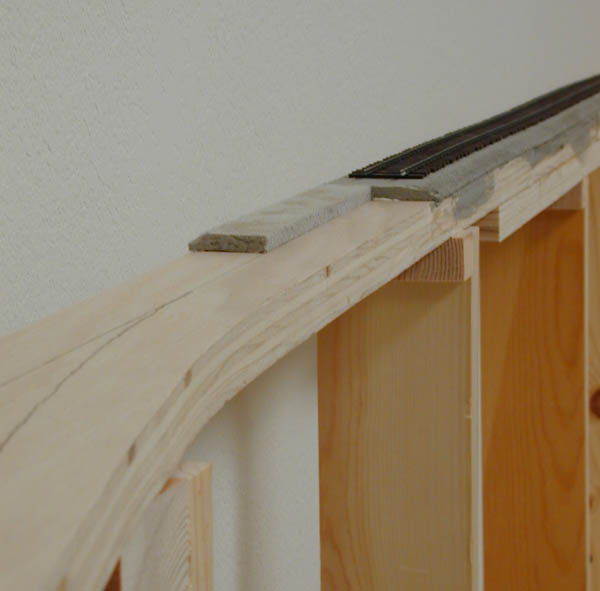

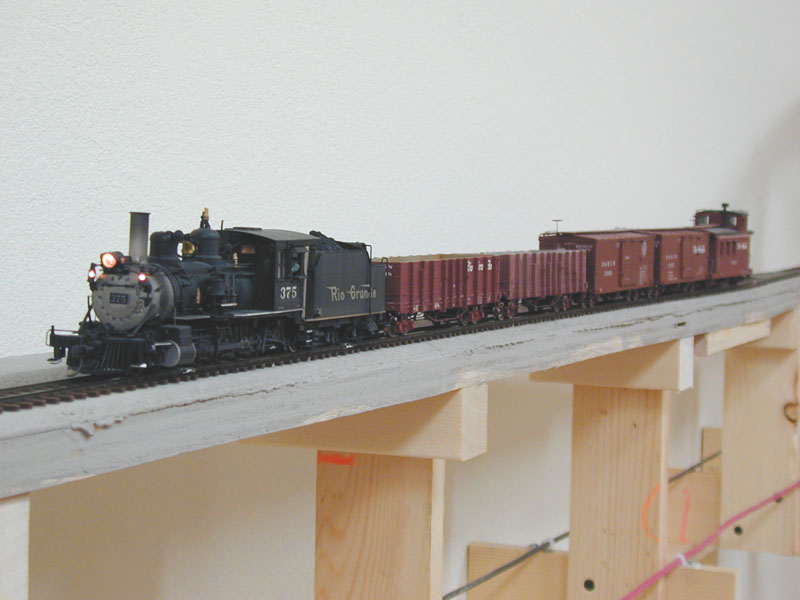

Sub-roadbed in Ophir on risers Homabed roadbed in Vance Jct. and on the helix The first section of track, at the edge of Ridgway The first train runs from Placerville to Ridgway
elevated_subroadbed_3.jpg (74636 bytes) roadbed_3.jpg (63833 bytes) track_1.jpg (31377 bytes) first_train_2.jpg (68155 bytes)

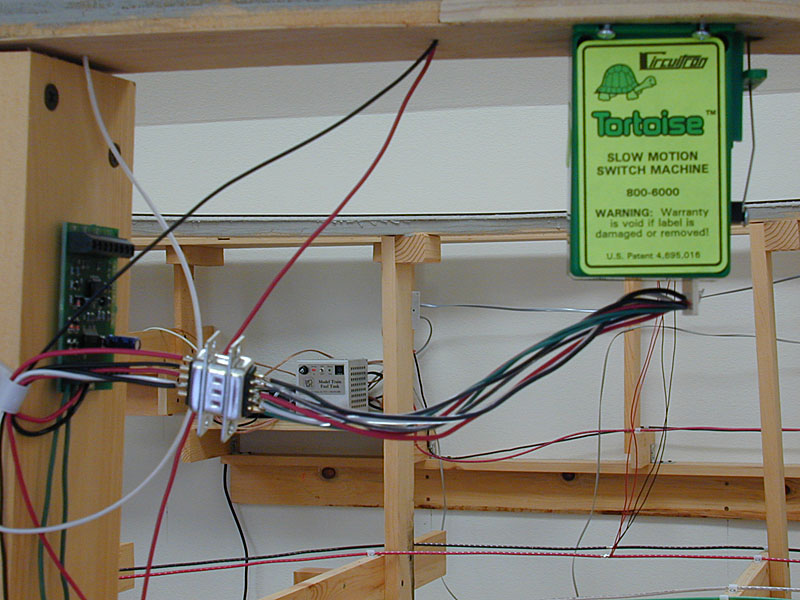

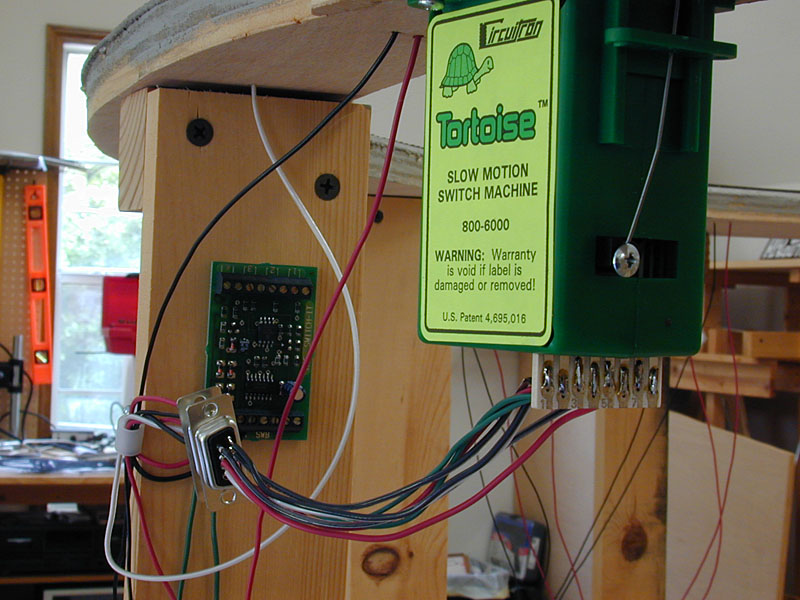

A tortoise switch machine in place How to fool an autofocus camera
